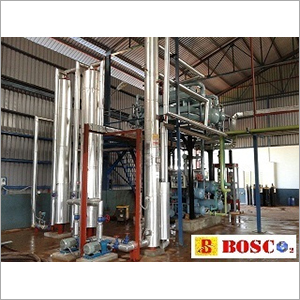

CO2 Gas Recovery Plant

Product Details:

Product Type CO2 Gas Recovery Plant
General Use Recovery and purification of carbon dioxide gas
Material Stainless Steel
Type Industrial
Capacity 250 to 1000 kg/hr
Computerized Yes
Automatic Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CO2 Gas Recovery Plant Product Specifications

Type Industrial
Production Rate Up to 1000 kg/hr
Pressure 16-22 kg/cm2
Air Consumption Low
Purity(%) 99.99%
Voltage 415 V
Control System PLC based
Power Consumption 45 kW/hr
Color Silver
Automatic Yes
Feature High efficiency, fully automatic operation
Dimension (L*W*H) Customized as per requirement
Material Stainless Steel
Weight (kg) 4000-8000 kg
Capacity 250 to 1000 kg/hr
Dew Point -65C
Computerized Yes
Cooling System Water cooled
Product Type CO2 Gas Recovery Plant
General Use Recovery and purification of carbon dioxide gas

Product Description

Our carbon dioxide gas recovery plant gets CO2 gas from the aging procedure goes through a progression of sanitization procedures specifically- an untainted steel CO2 froth trap to isolate the gas, A deodorizer. In the meantime, CO2 with a high level of immaculateness is essential for the generation procedure in an advanced brewery. With our carbon dioxide gas recovery plant, we provide systems that match every prerequisites of high quality carbon dioxide treatment: optimum immaculateness with least O2 matter and greatest outcome.

In some stages, the CO2 gas is purged completely, so it goes along even with the rigorous requirements of the fermenting business. From the aging containers of our carbon dioxide gas recovery pant, the CO2 is initially prompted to the froth separator. In this stage, the froth get on from the aging tanks is isolated. Through less-force gas storage inflatable the gas circulates into the gas purifier, where it is cleared by counter circulation of water. Further, in the gas purifier water-solvent debasements and pressurized canned products are consumed from the carbon dioxide.

Our Carbon Dioxide Gas Recovery Plant Primarily Includes Of Equipments That Are Mentioned Below:

CO2 Strippers, Balloons, Vaporizers And Storage Tanks
Evaporation, Vent And Liquefaction Condensers
Dryers/ Dehydrators
Purification Modules Such As Foam Traps
Refrigerated CO2 Tension Vessels
Deodorizers

Properties:

Anticipates Defilement Of Greasing Up Oil
Durable Outline Including Stuffing Box And Cross Head
Enhances CO2 Assimilation
Intact Stripping Of CO2
Low Tension Cleaning
Advances Fuel-Savings As Well As Is Financially Savvy

Specifications:

Processing Material: Agronomic Products
Process: Ferment
Processing: Fermentation & Distillation
Application Industries: Alcohol/Ethanol

FAQs:

Q: What is a CO2 recovery plant?

A: CO2 Recuperation Plant takes CO2 gas from the maturation interaction goes through a progression of purging cycles specifically - a hardened steel CO2 foam trap to isolate the gas, A deodoriser . Simultaneously, CO2 with a very high degree of purity is indispensable for the production process in a modern brewery.

Q: What is the purpose of a CO2 recovery plant?

A: The main purpose is to reduce greenhouse gas emissions and increase the efficiency of industrial processes.

Q: What industries use CO2 gas recovery plants?

A: CO2 recovery plants are commonly used in the oil and gas, chemical, and food and beverage industries.

Q: How does a CO2 recovery plant work?

A: The CO2 is captured from flue gases or process streams and purified through various separation and filtration techniques. The purified CO2 is then compressed and stored for reuse or sale.

Cutting-Edge Recovery Process

The plant leverages a multi-stage process including scrubbing, dehydration, compression, and purification to recover high-purity CO2. The systems oil-free compressor and advanced PLC control ensure consistent purity and safety, resulting in reliable performance in diverse industrial applications.

High Safety Standards and Compliance

Equipped with integrated safety interlocks and modern alarm systems, our plant meets rigorous ISO 9001:2015 standards. These features safeguard both equipment and personnel, minimizing the risk of operational hazards and ensuring long-term, trouble-free operation.

Comprehensive Support and Easy Installation

Our team provides complete installation services and ongoing technical support for seamless commissioning and operation. With user-friendly, computerized controls and fully automatic functions, operators benefit from minimal manual intervention and extensive after-sales service options.

FAQs of CO2 Gas Recovery Plant:

Q: How does the CO2 Gas Recovery Plant operate to achieve high purity and recovery rates?

A: The plant operates through a combination of scrubbing impurities, advanced dehydration, oil-free compression, and multi-stage purification, all managed by an automatic PLC-based control system. This ensures a 98% recovery rate and delivers CO2 with 99.99% purity for industrial use.

Q: What are the main benefits of installing this CO2 Gas Recovery Plant for my facility?

A: Key advantages include high recovery efficiency, reduced air and power consumption, exceptionally pure CO2 output, and integrated safety features. Its quiet operation and comprehensive support further optimize plant performance and reliability.

Q: When and where should the CO2 Gas Recovery Plant be installed?

A: The plant is best installed in industrial environments where ambient temperatures range from 5C to 45C. It is designed as a stationary system with customized dimensions to fit diverse facility layouts. Installation services are available globally, including support throughout India.

Q: What safety features are integrated into this plant?

A: The system is equipped with advanced safety interlocks, alarms, and a PLC-based control scheme to monitor operational parameters and automatically mitigate risks, protecting both personnel and equipment throughout operation.

Q: How is after-sales support structured for this CO2 recovery solution?

A: Clients benefit from comprehensive technical and operational support, including installation, remote assistance, maintenance, and training. Our responsive service ensures optimal performance and swift resolution of any technical issues.

Q: What is the process flow for CO2 recovery in this plant?

A: Feed gas at ambient conditions enters the plant through flanged connections and undergoes scrubbing to remove contaminants, dehydration to achieve a dew point of -65C, oil-free compression, and final purificationresulting in CO2 ready for industrial applications.

Q: What are the usage and application areas for this plant?

A: This plant is ideal for industries needing high-purity CO2, such as beverage production, food processing, and chemical manufacturing. Its robust, ISO-certified design accommodates demanding, continuous-use scenarios requiring large-scale gas recovery and purification.
